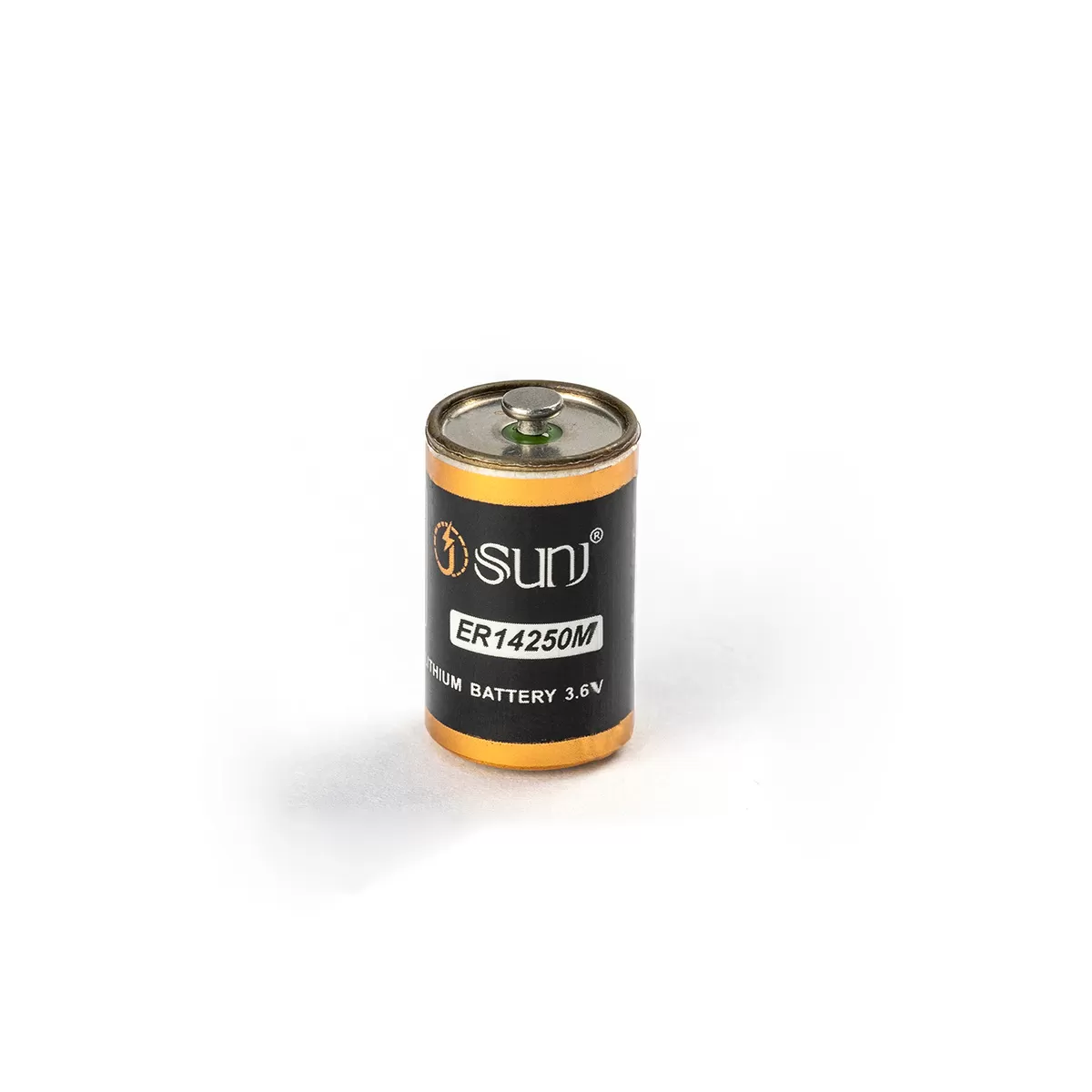

ER14250M 1/2 AA 3.6V Lithium Thionyl Chloride Battery – Spiral-type, High-Power, Long-Lasting Performance
ER14250M 1/2 AA 3.6V Lithium Thionyl Chloride Battery – Spiral-type, High-Power, Long-Lasting Performance
The ER14250M is a high-power, spiral-type 3.6V Lithium Thionyl Chloride (Li-SOCl2) battery, specifically engineered for applications that require high pulse current, long operating life, and superior reliability. This non-rechargeable lithium battery delivers a stable voltage output with a high energy density of 450Wh/kg, making it ideal for industrial, IoT, and critical electronic applications.
With a nominal capacity of 800mAh, the ER14250M provides consistent and long-lasting power, even in extreme environments ranging from -55°C to +80°C. It features a low self-discharge rate (<1% per year at 25°C), ensuring a 10+ year shelf life under optimal storage conditions.
This battery maintains excellent voltage stability under continuous and pulse discharge conditions by utilizing advanced lithium metal anode technology and a carbon-thionyl chloride cathode. It is certified with UN, CE, and UL safety standards and meets stringent industrial and transportation regulations.
Basic Parameters
| Subject | Parameters | Remark |
| Specification | 1/2AA | Spiral-type, stainless steel shell, fully sealed structure. |
| Nominal voltage | 3.6V | |
| Nominal capacity | 800mAh | 2mA, 25±3℃，cut-off at 2.0V |
| Max continuous discharge current | 100mA | |
| Max available pulse current | 200mA | |
| Operating temperature | -55℃~+80℃ | Elevated operating temperatures can cause reduced pulse capacity and low voltage readings. For temperatures exceeding +40℃ or falling below -20℃, consult SUNJ. |

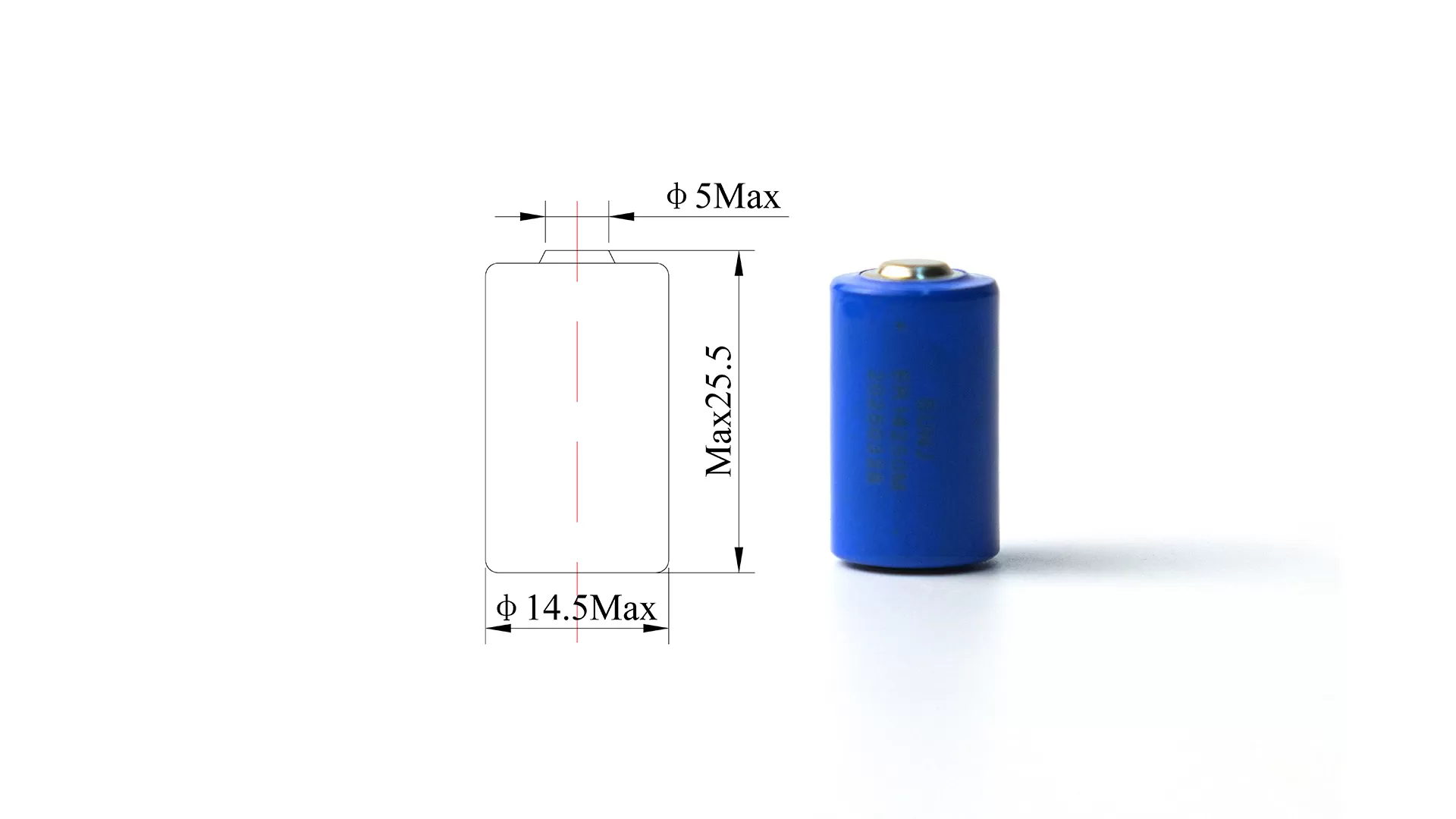

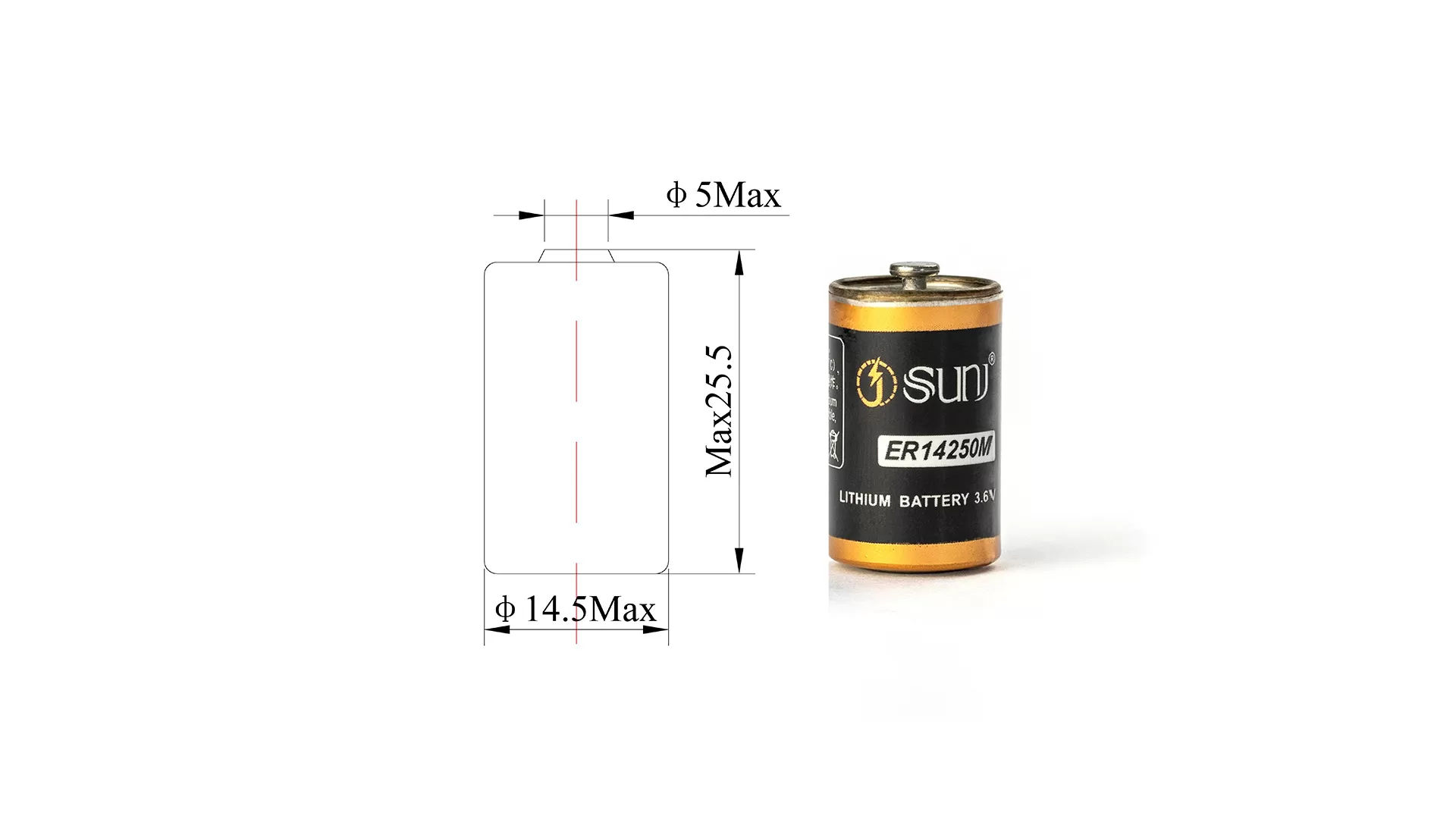

| Dimension | φ14.5x25.5mm | Figure attached |
| Standard weight | About 10g | |
| Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% |
Available Terminations: ◆ S: Standard terminations ◆ T: Solder tabs ◆ P: Axial Pins ◆ Or special requirement(wire, connectors, etc)
Compatible Part Numbers: 1770-XZ, 3B26, 418-0076, 60-0576-100, 6135-99-770-2535, 6ES5-980-0MA11, 6ES59800MA11, 742-0011, 922-1262, ER3, ER3S, ER4, LS14250, LS3, T04/41, T04/51, TL-2150, TL-2150/S, TL-2151, TL-5101, TL-5112, TL-5151, TL-5151S, TL2150, TL2151, TL5101, TL5112, TL5151, TL5151S, VL1/2AA etc.
(Note： Compatibility is based on matching voltage, size, and performance. If used as a replacement or for installation considerations, please consult our technical consultants.)
Storage Guidelines: Store in a clean, dry, and well-ventilated area. Keep temperature below 20℃ (do not exceed 30℃).
Warnings:
1. Non-rechargeable battery – don't charge.
2. Keep away from fire, flammable, and explosive materials.
3. Don't short-circuit, crush, disassemble, heat above 100℃, or incinerate.
4. Use only within the specified temperature range.
Electrical Performance Graph

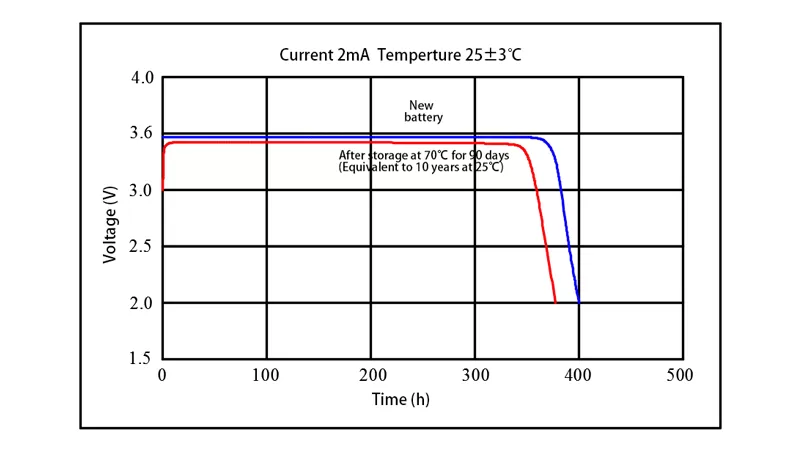

ER14250M Discharge Profiles (25℃)↓
Voltage Recovery After Storage↓
Voltage vs. Temperature curve↓
Capacity vs.Current(2.0 cutoff)↓
Key Features & Technical Advantages
◆ High Voltage & Stability – 3.6V nominal voltage with a stable operating range of 3.3V to 3.6V.
◆ Low Self-Discharge – <1% per year at 25°C, ensuring long shelf life.
◆ High Energy Density – 450Wh/kg, providing extended operational time.
◆ Wide Operating Temperature – -55°C to +85°C, ensuring reliable performance in extreme conditions.
◆ Stainless Steel Construction – Corrosion-resistant casing for enhanced durability.
◆ Hermetic Glass-to-Metal Sealing – Prevents leakage, ensuring battery integrity.
◆ Non-Flammable Electrolyte – Enhances safety and compliance with IEC60086-4 standards.
◆ High Pulse Capability – Designed for applications requiring rapid power bursts.
◆ Transport-Safe & Certified – Fully compliant with international shipping regulations.
Application Areas
The ER14250M lithium battery is a preferred choice for industries requiring long-term reliability, high current discharge, and stable voltage output. Common applications include:
Smart & Industrial Applications:
● Smart Utility Meters (Gas, Water, Electric, AMR, AMI systems)
● IoT Devices & Wireless Sensor Networks
● Automotive Telematics & GPS Trackers
● Storage & Asset Tracking Systems
● Fleet Monitoring & Data Logging Systems
● Security & Alarm Systems (Smoke Alarms, Intrusion Detection, Home Security)
● Embedded Electronics & Remote Monitoring Equipment
Heavy-Duty & Military Applications:
● Industrial Automation & PLC Backup Power
● Machine Tools & CNC Control Systems
● Oil & Gas Exploration (Drilling Sensors, Well Monitoring)
● Military & Aerospace Electronics
● Research & Development Instruments
Why Choose ER14250M from SUNJ?
At SUNJ, we focus on delivering high-power lithium primary batteries engineered for performance and reliability. The ER14250M 3.6V lithium battery is designed with a spiral structure to support high pulse currents, making it ideal for smart meters, IoT devices, security systems, and other high-drain industrial electronics. With excellent voltage stability, low self-discharge, and certifications like UL, UN38.3, and CE, this cell ensures consistent performance even in extreme temperatures.
Order Now – Fast Dispatch & Competitive Bulk Pricing
Looking for a dependable ER14250M battery supplier? SUNJ offers factory-direct pricing, expert technical support, and rapid international delivery. Contact us today to get your quote and ensure a stable supply of premium lithium batteries for your critical applications.
All Li-Socl2 Battery Specifications
| International Model Size | Max Dimension [mm] | Weight [g] | Nominal Voltage [V] | Nominal Capacity | Max Continuous Operating Current [mA] | Max Pulse Operating Current [mA] | |||
| Model No. | Size | End Voltage [V] | Nominal Current [mA] | Nominal Capacity[mAh] | |||||
| Bobbin Type | |||||||||
| ER10450H | AAA | Φ10.5*45.0 | 10 | 3.6 | 2.0 | 1.0 | 1000 | 20 | 50 |
| ER14250H | 1/2AA | Φ14.5*25.2 | 10 | 3.6 | 2.0 | 1.0 | 1200 | 20 | 50 |
| ER14335H | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 1.0 | 1650 | 40 | 100 |
| ER14505H | AA | Φ14.5*50.5 | 18 | 3.6 | 2.0 | 1.0 | 2700 | 50 | 100 |
| ER17335H | 2/3AA | Φ17.5*33.5 | 20 | 3.6 | 2.0 | 1.0 | 1900 | 50 | 100 |
| ER17505H | A | Φ17.5*50.5 | 24 | 3.6 | 2.0 | 2.0 | 3600 | 70 | 150 |
| ER18505H | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 2.0 | 4000 | 100 | 150 |
| ER26500H | C | Φ26.2*50.0 | 53 | 3.6 | 2.0 | 2.0 | 8500 | 100 | 200 |
| ER34585H | ―― | Φ34.2*58.5 | 100 | 3.6 | 2.0 | 2.0 | 16000 | 150 | 300 |
| ER34615H | D | Φ34.2*61.5 | 103 | 3.6 | 2.0 | 2.0 | 19000 | 230 | 400 |
| ER261020H | CC | Φ26.2*102.0 | 100 | 3.6 | 2.0 | 2.0 | 17000 | 250 | 500 |
| ER341245H | DD | Φ34.2*124.5 | 200 | 3.6 | 2.0 | 5.0 | 36000 | 450 | 700 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
| Spiral Type | |||||||||
| ER14250M | 1/2AA | Φ14.5*25.5 | 10 | 3.6 | 2.0 | 2.0 | 800 | 100 | 200 |
| ER14335M | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 2.0 | 1350 | 200 | 600 |
| ER14505M | AA | Φ14.5*50.5 | 19 | 3.6 | 2.0 | 3.0 | 2100 | 400 | 1000 |
| ER17335M | 2/3A | Φ17.5*33.5 | 19 | 3.6 | 2.0 | 3.0 | 1700 | 400 | 1000 |
| ER17505M | A | Φ17.5*50.5 | 26 | 3.6 | 2.0 | 5.0 | 2800 | 400 | 1000 |
| ER18505M | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 5.0 | 3500 | 500 | 1000 |
| ER26500M | C | Φ26.2*50.5 | 57 | 3.6 | 2.0 | 10 | 6000 | 1000 | 2000 |
| ER34615M | D | Φ34.2*61.5 | 109 | 3.6 | 2.0 | 15 | 13000 | 1800 | 3500 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
Selection Guidelines: ◆ For high current discharge applications, choose Spiral type ◆ For long-term low current operations, choose Bobbin type ◆ For higher capacity requirements, select larger size models.
