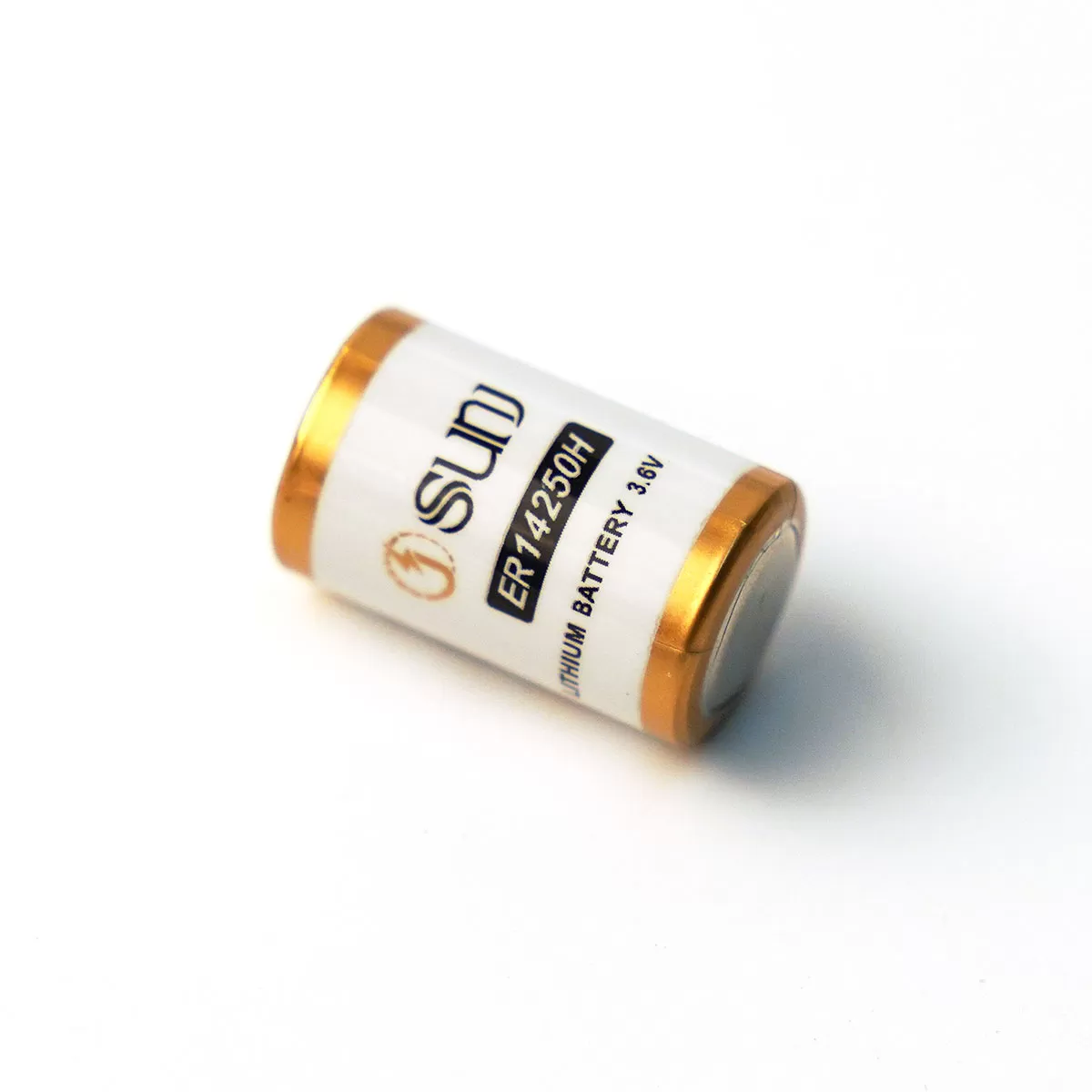

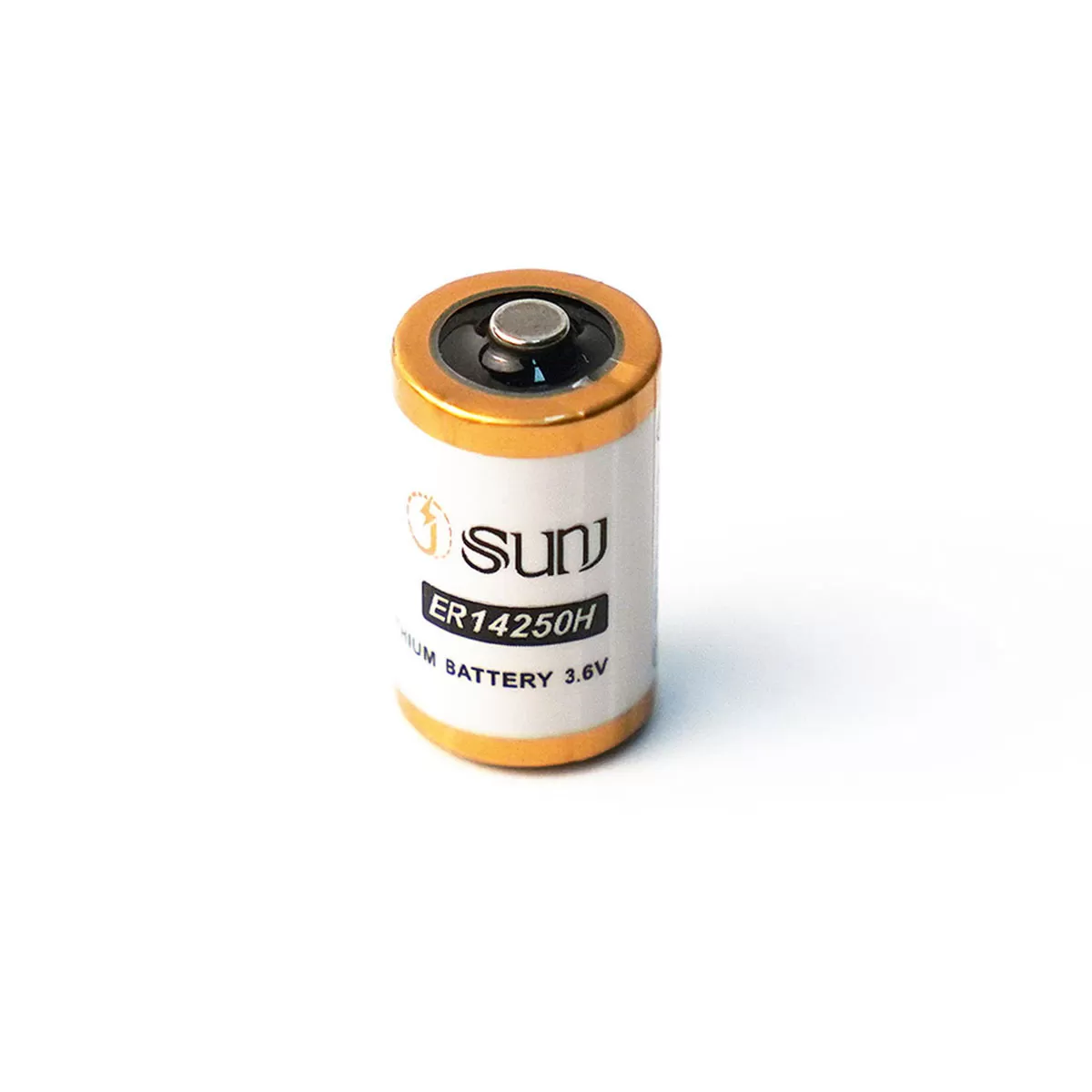

ER14250H 1/2 AA 3.6V
1200mAh 3.6V Lithium Thionyl Chloride Battery – High-Capacity, Bobbin-Type Cell, Ultra-Long Life
1200mAh 3.6V Lithium Thionyl Chloride Battery – High-Capacity, Bobbin-Type Cell, Ultra-Long Life
The ER14250H is a high-capacity, bobbin-type 3.6V Lithium Thionyl Chloride (Li-SOCl2) battery, designed for applications requiring ultra-long operational life, stable voltage, and low self-discharge. This non-rechargeable lithium battery provides a nominal capacity of 1200mAh, making it ideal for low-drain and long-term standby power applications.
Built with lithium metal as the anode and a carbon-thionyl chloride mixture as the cathode, the ER14250H delivers an exceptionally high energy density of 700Wh/kg, outperforming other chemical battery technologies. With a low self-discharge rate (<1% per year at 25°C), this battery ensures a storage life of over 10 years under optimal conditions.
Its bobbin cell construction enhances reliability and safety, supporting applications that require consistent low-current discharge over extended periods. The ER14250H is fully certified with UN, CE, and UL safety standards, making it a trusted choice for industrial and smart metering applications.
Basic Parameters
| Subject | Parameters | Remark |
| Specification | 1/2AA | Bobbin-type, stainless steel shell, fully sealed structure. |
| Nominal voltage | 3.6V | |
| Nominal capacity | 1200mAh | 1mA, 25±3℃，cut-off at 2.0V |
| Max continuous discharge current | 20mA | |
| Max available pulse current | 50mA | |
| Operating temperature | -55℃~+80℃ | Elevated operating temperatures can cause reduced pulse capacity and low voltage readings. For temperatures exceeding +40℃ or falling below -20℃, consult SUNJ. |

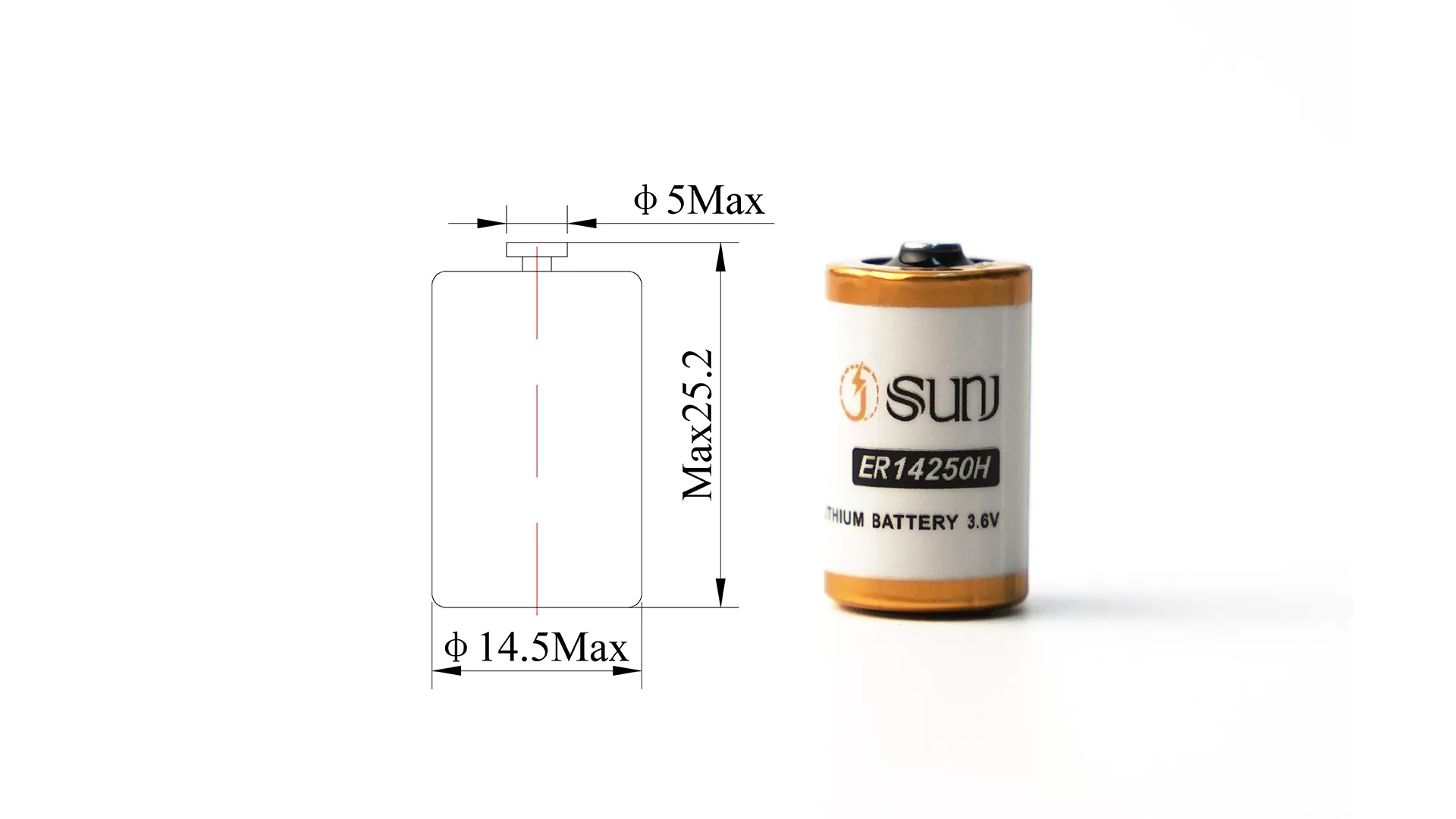

| Dimension | φ14.5x25.2mm | Figure attached |
| Standard weight | About 10g | |
| Annual self-discharge rate | ≤1% | 25±3℃，RH 65±10% |

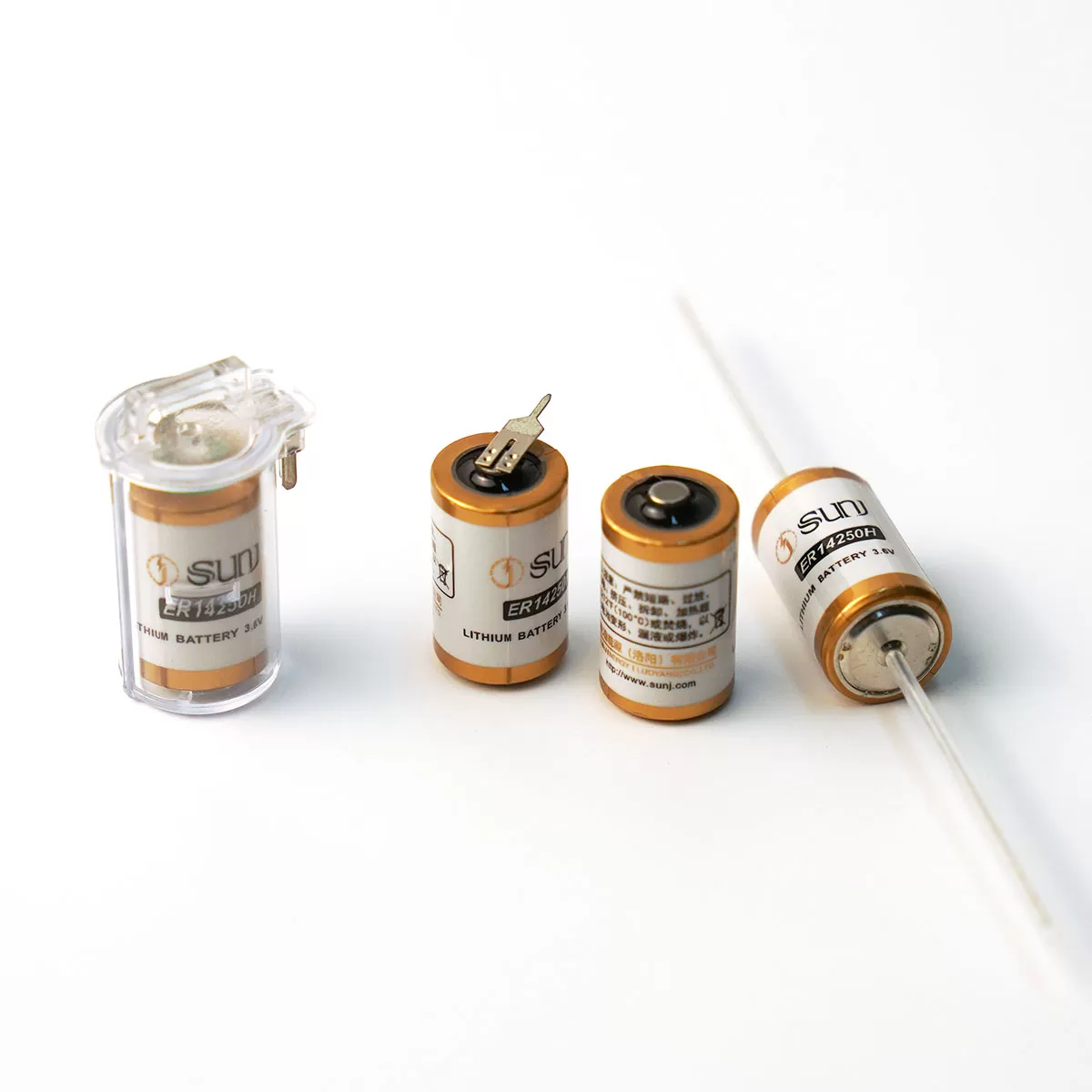

Available Terminations: ◆ S: Standard terminations ◆ T: Solder tabs ◆ P: Axial Pins ◆ Or special requirement(wire, connectors, etc)
Compatible Part Numbers: 1770-XZ, 3B26, 418-0076, 60-0576-100, 6135-99-770-2535, 6ES5-980-0MA11, 6ES59800MA11, 742-0011, 922-1262, ER3, ER3S, ER4, LS14250, LS3, T04/41, T04/51, TL-2150, TL-2150/S, TL-2151, TL-5101, TL-5112, TL-5151, TL-5151S, TL2150, TL2151, TL5101, TL5112, TL5151, TL5151S, VL1/2AA etc.
(Note： Compatibility is based on matching voltage, size, and performance. If used as a replacement or for installation considerations, please consult our technical consultants.)
Storage Guidelines: Store in a clean, dry, and well-ventilated area. Keep temperature below 20℃ (do not exceed 30℃).
Warnings:
1. Non-rechargeable battery – don't charge.
2. Keep away from fire, flammable, and explosive materials.
3. Don't short-circuit, crush, disassemble, heat above 100℃, or incinerate.
4. Use only within the specified temperature range.
Electrical Performance Graph
ER14250H Discharge Profiles (25℃)↓

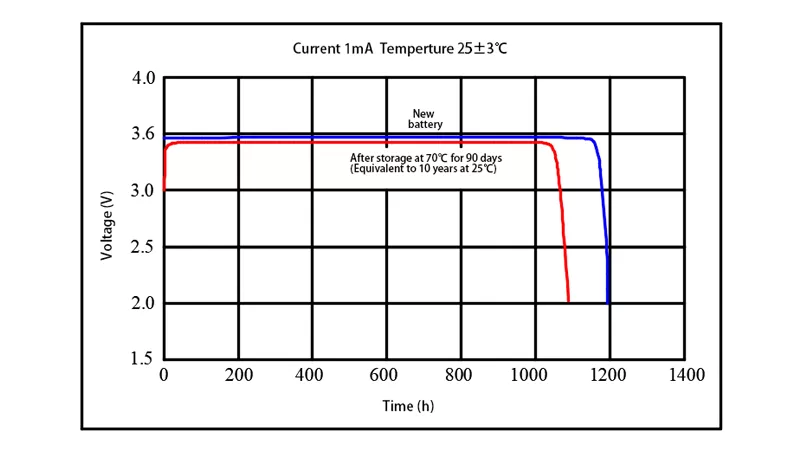

Voltage Recovery After Storage↓
Voltage vs. Temperature curve↓
Capacity vs.Current(2.0 cutoff)↓
Key Features & Technical Advantages
◆ High Energy Density – 700Wh/kg, the highest among lithium primary batteries.
◆ Long Shelf Life – 10+ years at room temperature, with an annual self-discharge rate of <1%.
◆ Stable Operating Voltage – 3.6V nominal voltage, ensuring consistent power supply.
◆ Wide Temperature Range – Functions reliably in extreme conditions from -55°C to +85°C.
◆ Low Self-Discharge – Ideal for applications requiring long-term battery reliability.
◆ Stainless Steel Construction – Durable corrosion-resistant casing.
◆ Hermetic Glass-to-Metal Sealing – Provides superior leak prevention.
◆ Non-Flammable Electrolyte – Enhances safety and compliance with IEC60086-4 standards.
◆ Certified & Transport-Safe – Fully compliant with UN38.3, MSDS, and international shipping regulations.
Application Areas
The ER14250H lithium battery is designed for applications that require long-lasting, reliable power with minimal maintenance. It is commonly used in:
Smart Metering & IoT Applications:
● Smart Utility Meters (Gas, Water, Electric, AMR, AMI systems)
● IoT Devices & Wireless Sensor Networks
● RFID, Toll Systems, and Remote Monitoring
● Smart Home Security & Alarm Systems
● Embedded Electronics & Long-Term Backup Power
Industrial & Specialized Applications:
● Automotive Telematics & GPS Tracking
● Fleet Monitoring & Asset Tracking Systems
● Medical Devices & Data Logging Systems
● Gas Exploration (Drilling Sensors, Pipeline Monitoring)
● Military & Aerospace Electronics
● D Instruments & Sensor Technologies
Why Choose ER14250H from SUNJ?
At SUNJ, we specialize in high-performance lithium primary batteries, offering bulk orders, wholesale pricing, and rapid global shipping. Our ER14250H provides superior long-term energy retention, stable voltage, and robust safety features, making it the optimal choice for critical and industrial applications.
Order Now – Bulk Discounts & Fast Shipping
Looking for a trusted ER14250H battery supplier? Get wholesale pricing, expert consultation, and worldwide fast shipping today! Contact us to secure your high-quality lithium battery supply.

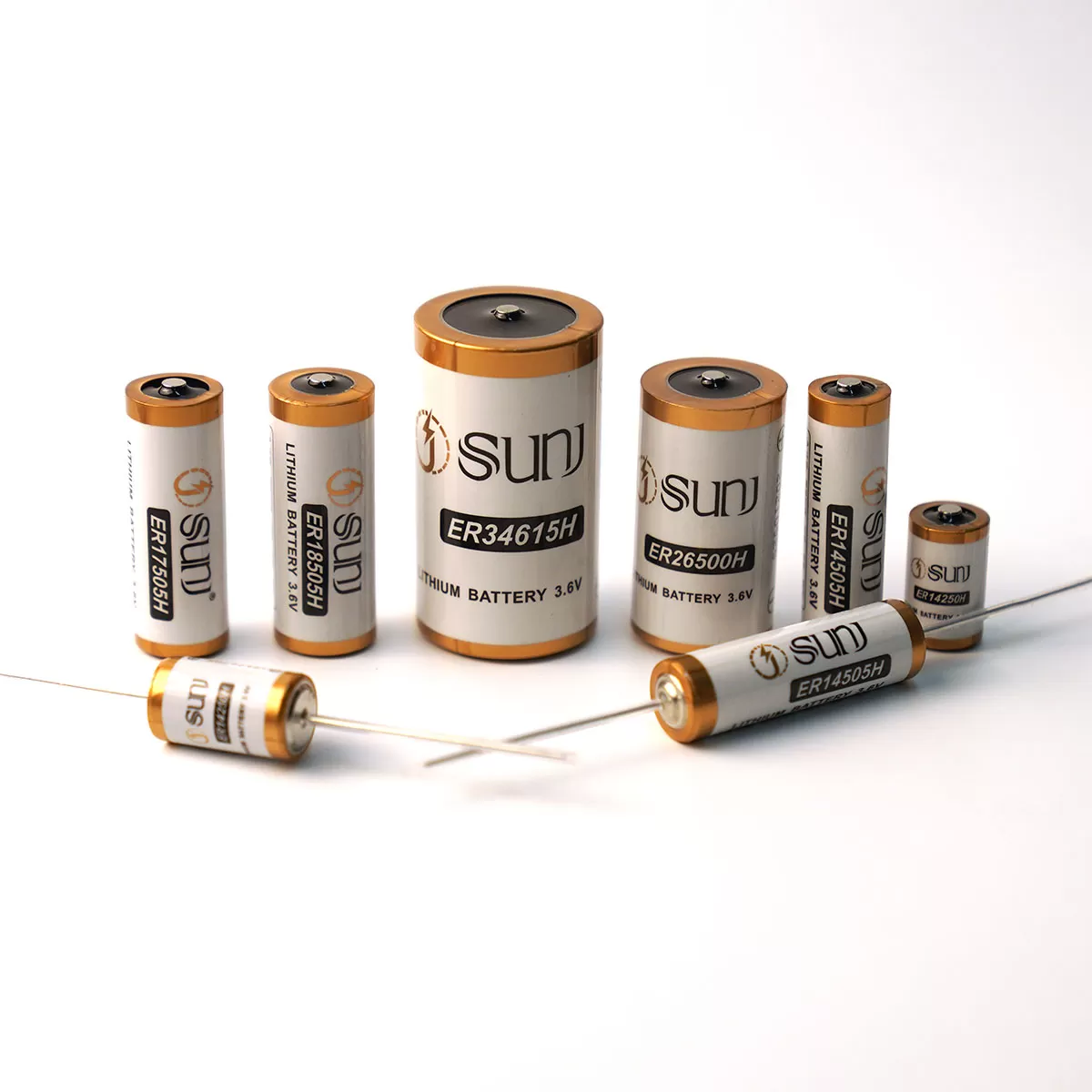

All Li-Socl2 Battery Specifications
| International Model Size | Max Dimension [mm] | Weight [g] | Nominal Voltage [V] | Nominal Capacity | Max Continuous Operating Current [mA] | Max Pulse Operating Current [mA] | |||
| Model No. | Size | End Voltage [V] | Nominal Current [mA] | Nominal Capacity[mAh] | |||||
| Bobbin Type | |||||||||
| ER10450H | AAA | Φ10.5*45.0 | 10 | 3.6 | 2.0 | 1.0 | 1000 | 20 | 50 |
| ER14250H | 1/2AA | Φ14.5*25.2 | 10 | 3.6 | 2.0 | 1.0 | 1200 | 20 | 50 |
| ER14335H | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 1.0 | 1650 | 40 | 100 |
| ER14505H | AA | Φ14.5*50.5 | 18 | 3.6 | 2.0 | 1.0 | 2700 | 50 | 100 |
| ER17335H | 2/3AA | Φ17.5*33.5 | 20 | 3.6 | 2.0 | 1.0 | 1900 | 50 | 100 |
| ER17505H | A | Φ17.5*50.5 | 24 | 3.6 | 2.0 | 2.0 | 3600 | 70 | 150 |
| ER18505H | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 2.0 | 4000 | 100 | 150 |
| ER26500H | C | Φ26.2*50.0 | 53 | 3.6 | 2.0 | 2.0 | 8500 | 100 | 200 |
| ER34585H | ―― | Φ34.2*58.5 | 100 | 3.6 | 2.0 | 2.0 | 16000 | 150 | 300 |
| ER34615H | D | Φ34.2*61.5 | 103 | 3.6 | 2.0 | 2.0 | 19000 | 230 | 400 |
| ER261020H | CC | Φ26.2*102.0 | 100 | 3.6 | 2.0 | 2.0 | 17000 | 250 | 500 |
| ER341245H | DD | Φ34.2*124.5 | 200 | 3.6 | 2.0 | 5.0 | 36000 | 450 | 700 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
| Spiral Type | |||||||||
| ER14250M | 1/2AA | Φ14.5*25.5 | 10 | 3.6 | 2.0 | 2.0 | 800 | 100 | 200 |
| ER14335M | 2/3AA | Φ14.5*33.5 | 13 | 3.6 | 2.0 | 2.0 | 1350 | 200 | 600 |
| ER14505M | AA | Φ14.5*50.5 | 19 | 3.6 | 2.0 | 3.0 | 2100 | 400 | 1000 |
| ER17335M | 2/3A | Φ17.5*33.5 | 19 | 3.6 | 2.0 | 3.0 | 1700 | 400 | 1000 |
| ER17505M | A | Φ17.5*50.5 | 26 | 3.6 | 2.0 | 5.0 | 2800 | 400 | 1000 |
| ER18505M | ―― | Φ18.5*50.5 | 30 | 3.6 | 2.0 | 5.0 | 3500 | 500 | 1000 |
| ER26500M | C | Φ26.2*50.5 | 57 | 3.6 | 2.0 | 10 | 6000 | 1000 | 2000 |
| ER34615M | D | Φ34.2*61.5 | 109 | 3.6 | 2.0 | 15 | 13000 | 1800 | 3500 |
| ER9V | ―― | 17.0*26.5*48.5 | 34 | 10.8 | 6.0 | 1.0 | 1200 | 25 | 50 |
Selection Guidelines: ◆ For high current discharge applications, choose Spiral type ◆ For long-term low current operations, choose Bobbin type ◆ For higher capacity requirements, select larger size models.
