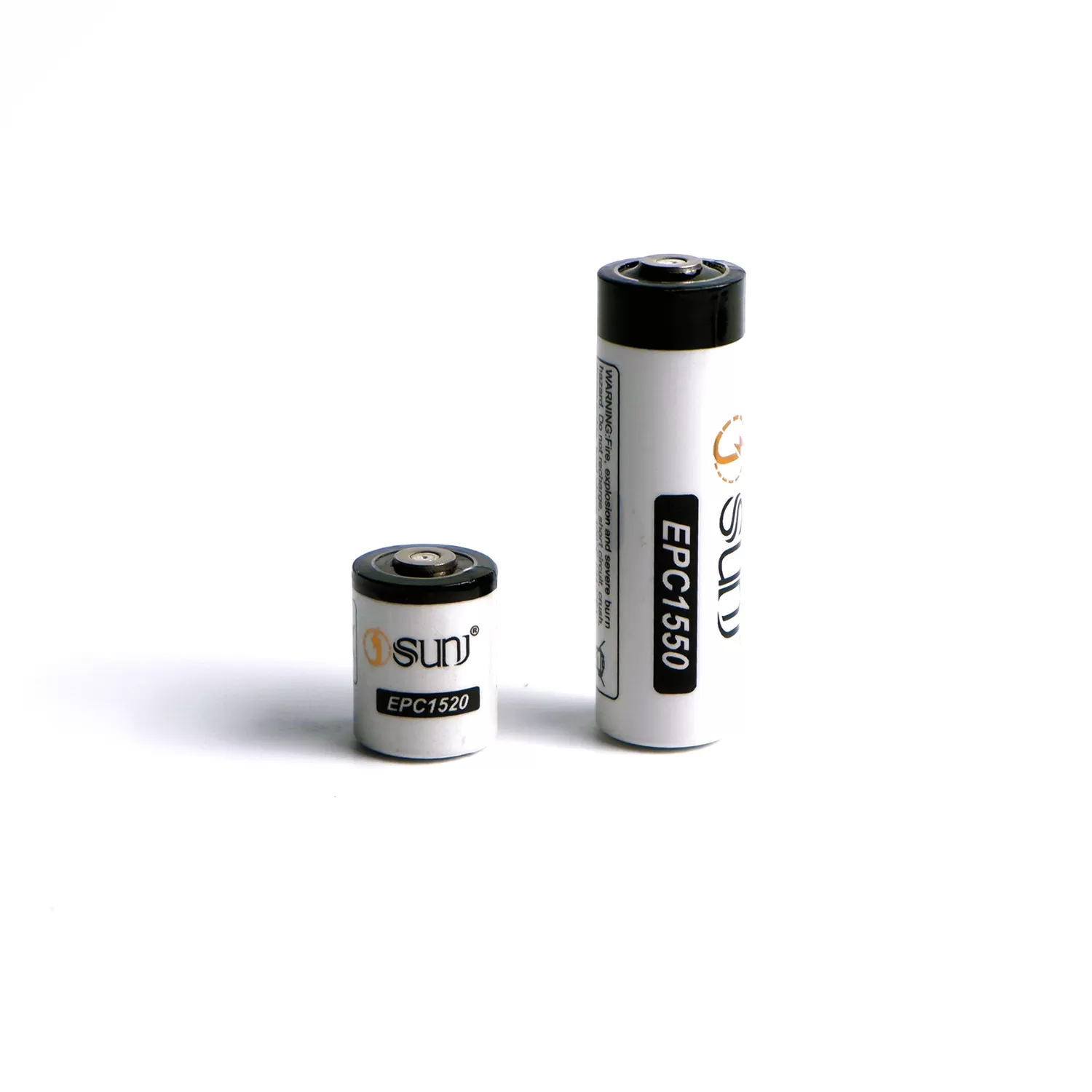

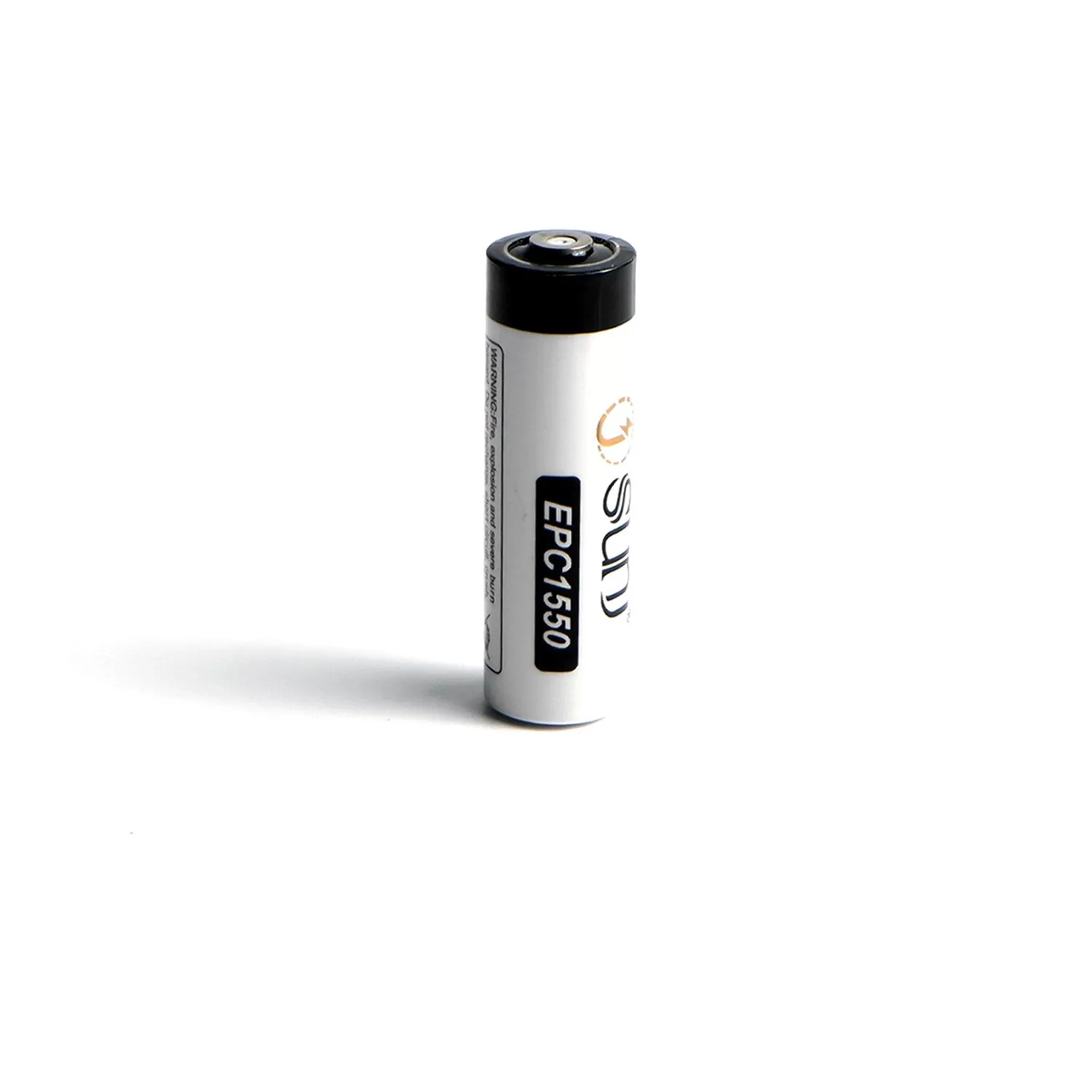

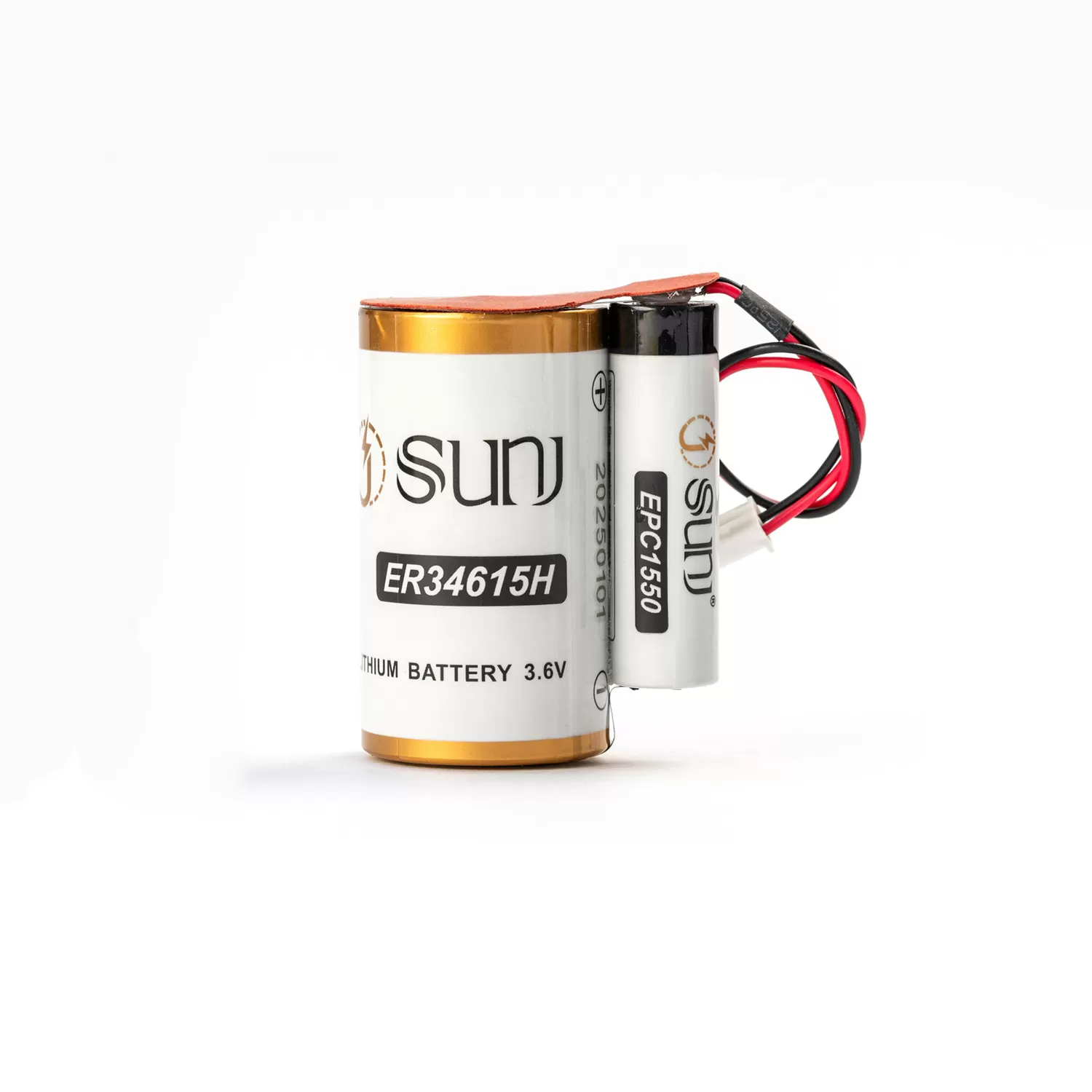

EPC1550

Super Pulse Composite Capacitance, with a compact yet powerful design (max φ15.1×50.5mm) and a weight of approximately 21.0g, it offers a rated capacitance of 560As @3.67V and 850As @3.90V. The capacitor ensures reliable operation with a maximum open-circuit voltage of ≥3.64V and an internal resistance of ≤100mΩ (RT@1kHz), providing a wide operating temperature range and long service life.

Technical Specification

The EPC1550 High Energy Capacitor from SUNJ Battery is a high-performance energy storage solution designed for applications requiring robust power delivery. This lithium ion capacitor features an instantaneous large current discharge capability, making it suitable for high-energy pulse applications.


High energy capacitor advantages

High Pulse Current Capability: Delivers instantaneous large current discharge, ensuring reliable performance in high-power applications.

◆ Low Leakage Current: Minimizes energy loss and extends service life.

◆ Wide Operating Temperature Range: Ensures stable performance across various environmental conditions.

◆ Long Service Life: Provides durable and reliable operation for extended periods.


High energy capacitor applications

◆ Marine Equipment: Ideal for marine life-saving devices, buoys, beacons, and lighthouses, ensuring reliable power supply in harsh marine environments.

◆ Industrial Applications: Suitable for industrial equipment requiring high pulse current and long service life.

◆ Smart Meters and IoT Devices: Provides stable power for smart meters, IoT devices, and other low-power applications requiring high reliability.


Basic Parameters

ItemSubjectRequirement

Appearancepositive and negative electrodes are marked correctly, no mechanical damage, no obvious scratches, clear signs, clean terminals, no modification, no leakage

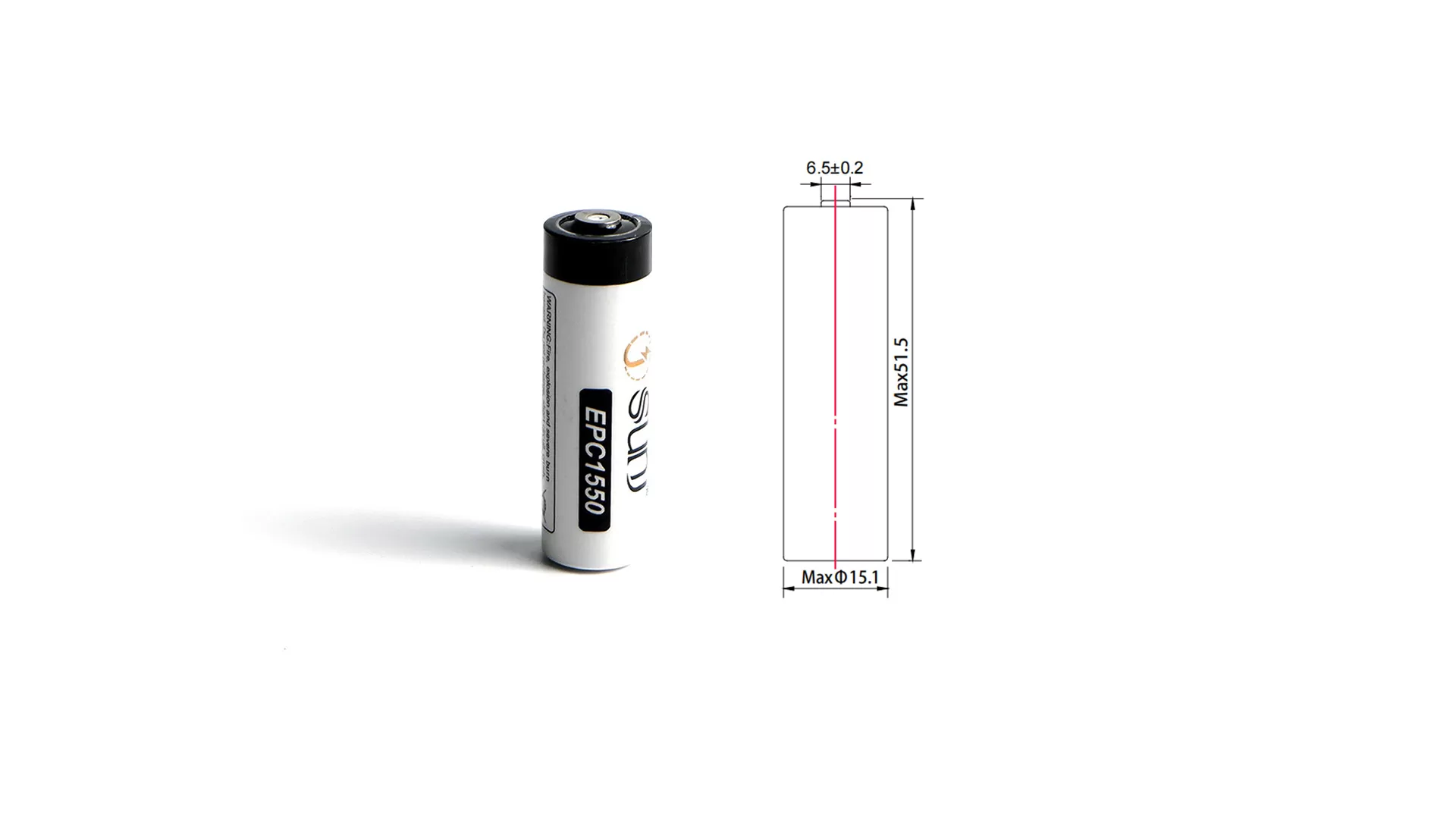

Dimensionmax φ15.1*50.5mm

Weightabout 21.0g

Open-circuit voltage≥3.64V

Internal resistance≤100mΩ (RT@1kHz)

Rated capacitance560As @3.67V
850As @3.90V
